Aerial work Platforms

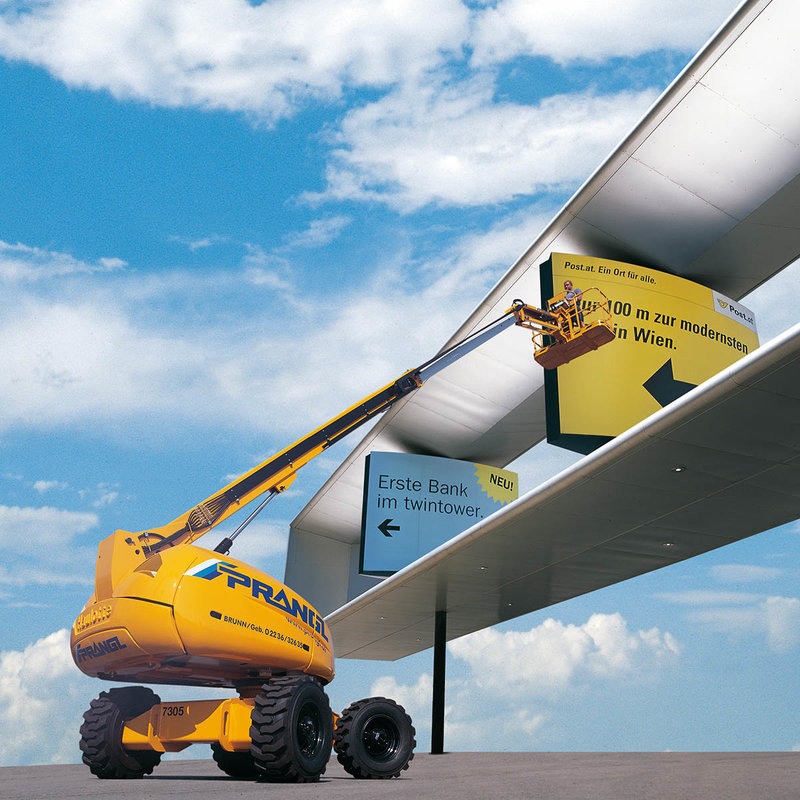

PST – Telescopic boom lifts

As telescopic work platforms have a large dead weight, they do not require support jibs and therefore offer total mobility. The hydraulic telescopic boom enables quick access speeds and therefore increased work productivity. Our large and diverse vehicle fleet gives you all the freedom you need.

Data sheets

Boom lift typeEcoManufacturer designationMaximum working heightCapacityHorizontal reachDownload
PST 140 D-H 14 TX14.07 m230 kg10.60 mDownload
PST 150 D-H 16 TPX15.44 m230 kg12.30 mDownload
PST 150 D-S45XC15,56 m454 kg11,02 mDownload
PST 210 D-H 21 TX20.80 m230 kg17.20 mDownload
PST 220 D-220 TJ+21,74 m400 kg17,79 mDonwload
PST 230 D-H 23 TPX22.60 m230 kg19.50 mDownload
PST 230 D-HT 23 RTJ PRO22.50 m450 kg18.30 mDownload
PST 250 D-H 25 TPX25.00 m250 kg17.50 mDownload
PST 280 D-S8527.90 m227 kg23.32 mDownload
PST 280 D-HT 28 RTJ PRO27.90 m350 kg23.85 mDownload
PST 280 D-280 TJ27.75 m350 kg21.45 mDownload
PST 280 D-860 SJ28.21 m230 kg22.86 mDownload
PST 340 D-S10534.00 m227 kg24.38 mDownload
PST 400 D-S12540.15 m227 kg24.38 mDownload
PST 430 D-1350 SJP43.30 m230 kg24.38 mDownload
PST 430 D-H 43 TPX 42.20 m230-450 kg19.40 mDownload
PST 430 D-HT 43 RTJ PRO42.20 m450 kg20.20 mDownload
PST 480 D-SX 15048,33 m340 kg24,38 mDownload Video ansehen
PST 570 D-SX 18056,86 m340 kg24,38 mDownload Video ansehen



Data sheets PST Hybrid



Boom lift typeEcoManufacturer designationMaximum working heightCapacityHorizontal reachDownload
PST 210 H-S260 FE20.60 m300 kg12.30 mDownload



The data sheets provided are intended only as an overview. For more precise technical information, please contact your contact person, one of our branches or use the contact form.
